    Series
    3.2202-1

    Sliding Clamps compact

    single acting, with spring return
    max. operating pressure 400 bar
    clamping force from 19 kN to 78 kN

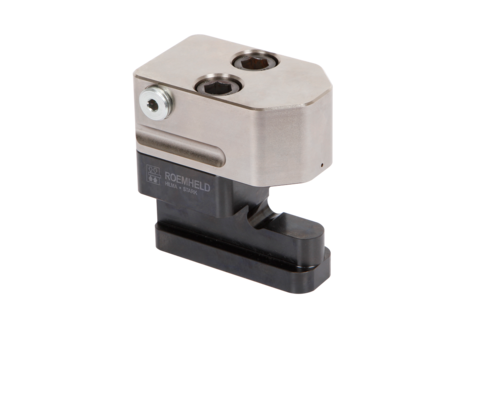

    Sliding Clamps compact
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Information Series
    Description
    3.2202 Sliding Clamps compact

    Manual positioning of the sliding clamp in the T-slots of the press ram or bed. Clamping on the die clamping edge by the application of hydraulic pressure to the piston and unclamping by spring force. The clamping block can also be fixed directly, without a T-slot adapter.



    Applications

    • on press beds and rams
    • on machines and equipments for clamping and locking
    • when the available space is limited
    • at environmental temperatures up to max. 120°C



    Special features

    • ideal force transmission
    • compact design
    • clamping force from 19 kN up to 78 kN
    • easy mounting
    • suitable for large clamping edge tolerances
    • no interfering edges when inserting the dies
    • easy retrofit
    • die standardisation is not required (width and depth)
    Video
    Products (6)
    type
    compact (6)
    type
    clamping block with T-slot adapter (6)
    stroke [mm]
    functioning
    single acting with spring return (6)
    max. operating pressure [bar]
    400 (6)
    hydraulic ports
    pipe thread G1/4 (6)
    max. clamping force [kN]
    for T-slot [mm]
    max. operating temperature [°C]
    120 (6)
    Item no. CAD datatypetypestroke [mm]functioning
    Item no.
    822021455
    CAD data
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    Properties
    Item no.
    822021855
    CAD data
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    Properties
    Item no.
    822032255
    CAD data
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    Properties
    Item no.
    822042255
    CAD data
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    Properties
    Item no.
    822042855
    CAD data
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    Properties
    Item no.
    822052855
    CAD data
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    12
    functioning
    single acting with spring return
    Properties
    Item no.
    822021455
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    max. clamping force [kN]
    19.6
    for T-slot [mm]
    14
    max. operating temperature [°C]
    120
    Item no.
    822021855
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    max. clamping force [kN]
    19.6
    for T-slot [mm]
    18
    max. operating temperature [°C]
    120
    Item no.
    822032255
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    max. clamping force [kN]
    32
    for T-slot [mm]
    22
    max. operating temperature [°C]
    120
    Item no.
    822042255
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    max. clamping force [kN]
    50
    for T-slot [mm]
    22
    max. operating temperature [°C]
    120
    Item no.
    822042855
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    8
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    max. clamping force [kN]
    50
    for T-slot [mm]
    28
    max. operating temperature [°C]
    120
    Item no.
    822052855
    type
    compact
    type
    clamping block with T-slot adapter
    stroke [mm]
    12
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    max. clamping force [kN]
    78
    for T-slot [mm]
    28
    max. operating temperature [°C]
    120
    Accessories (16)
    Item no. CAD data Description
    Item no.
    270010131
    CAD data
    /
    Description
    High-pressure hose ND4 / L=600 with wire braiding internal diameter: 4 mm length: 600 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
    Item no.
    270010133
    CAD data
    /
    Description
    High-pressure hose ND4 / L=800 with wire braiding internal diameter: 4 mm length: 800 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
    Item no.
    270010137
    CAD data
    /
    Description
    High-pressure hose ND4 / L=1200 with wire braiding internal diameter: 4 mm length: 1200 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
    Item no.
    270010141
    CAD data
    /
    Description
    High-pressure hose ND4 / L=1600 with wire braiding internal diameter: 4 mm length: 1600 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
    Item no.
    2754180
    CAD data
    Description
    Bracket to accommodate a sliding clamp without spacer bar for T-slot 18 mm *as per catalogue sheet WZ 3.2202
    Item no.
    2754220
    CAD data
    Description
    Bracket to accommodate a sliding clamp without spacer bar for T-slot 22 mm *as per catalogue sheet WZ 3.2202
    Item no.
    2754280
    CAD data
    Description
    Bracket to accommodate a sliding clamp without spacer bar for T-slot 28 mm *as per catalogue sheet WZ 3.2202
    Item no.
    2754500
    CAD data
    Description
    Spacer bar for bracket sliding clamp for T-slot 18, 22 or 28 mm specify distance dimension “x” when ordering *as per catalogue sheet WZ 3.2202
    Item no.
    504951400
    CAD data
    /
    Description
    Spacer bar for bracket sliding clamp for T-slot 14 mm specify distance dimension “x” when ordering *as per catalogue sheet WZ 3.2202
    Item no.
    550650003
    CAD data
    /
    Description
    Hose holder made from Delrin *as per data sheet WS12.3820
    Application examples
    Application example 1

    Sliding clamps fixed to bed and ram of a double-column press. Dies are entered from the front using consoles.

    Sliding clamps fixed to bed and ram of a double-column press
    Sliding clamps fixed to bed and ram of a double-column press
