Series

Wedge Clamps for Tapered Clamping Edge

double acting, max. clamping force 25 to 630 kN
without and with position monitoring at the side

Downloads

Catalogue sheet

US ES FR

Operating instructions

Information Series

Description

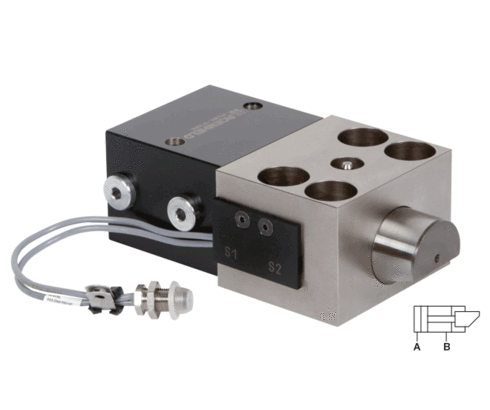

2.2401 Wedge clamps for Tapered Clamping Edge

without and with position monitoring at the side

Double-acting wedge clamp for clamping moulds or dies on a press bed or ram or in
injection moulding machines, machines and installations. The wedge clamp consists of a hydraulic block cylinder and a piston guided in a housing. The clamping bolt is provided with 20° bevel to clamp on the tapered clamping surface of the die. Based on the internal design of the wedge clamp and the 20° bevel of the clamping bolt, the system is providing internal friction. For safety reasons and in the sense of the machine tool guide lines 89/37/EC the hydraulic pressure must be maintained. When upper dies are clamped by wedge clamps, they must be secured mechanically when maintenance work is carried out.

The proximity switches are installed in the guide housing. They are activated by means of the wedge bolt. The positions bolt in off position or in clamping position are displayed.
Temperature resistance: up to 100 °C (with position monitoring)
cable length: 250 mm
connector: 4 pole

Applications

safe clamping of dies with tapered clamping edge
for clamping of dies on press bed and ram
for clamping of dies in injection moulding machines

Special features

sizes from 25 kN to 1250 kN clamping force
high operational safety by position monitoring and automatic motion sequence
very sturdy and proven clamping element with a high standard of safety and a long service life

Video

Products (14)

Number

Item no.	CAD data	type	type	functioning	for clamping edge
Item no. 4604620	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 4604621	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 4604622	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 4604623	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 4604634	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 4604635	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 4604636	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 824030500	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 824040500	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties
Item no. 824050500	CAD data	type wedge clamp	type standard	functioning double acting	for clamping edge angular	Properties

Accessories (9)

Number

Item no.	CAD data	Description
Item no. 3300285	CAD data	Description Drill bushing DIN 179 A 12 x 12 mm *as per data sheet B1.738
Item no. 3300287	CAD data	Description Drill bushing DIN 179 A 17 x 16 mm as per data sheet B1.738
Item no. 3300288	CAD data	Description Drill bushing DIN 179 A 21 x 20 mm as per data sheet B1.738
Item no. 3300289	CAD data	Description Drill bushing DIN 179 A 26 x 20 mm as per data sheet B1.738
Item no. 3300420	CAD data	Description Drill bushing DIN 179 32 x 25 mm *as per catalogue sheet WZ 2.2401
Item no. 3300430	CAD data	Description Drill bushing DIN 179 38 x 30 mm *as per catalogue sheet WZ 2.2401
Item no. 3300440	CAD data	Description Drill bushing DIN 179 44 x 30 mm *as per catalogue sheet WZ 2.2401
Item no. 5700013	CAD data /	Description Connecting line with screw coupling 5-pole cable length 5 m *as per catalogue sheet WZ 4.2150
Item no. 5700014	CAD data /	Description Connecting line with screw coupling 5-pole cable length 10 m *as per catalogue sheet WZ 4.2150

Application examples

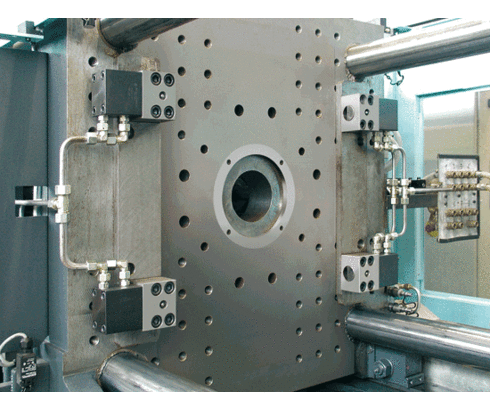

Application example 1

Wedge clamps 160 kN clamping force on a Windsor W 550.

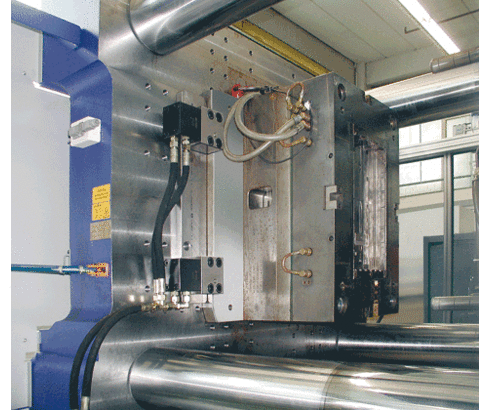

Application example 2

Wedge clamps on a Demag Ergotech 250/630 injection moulding machine.

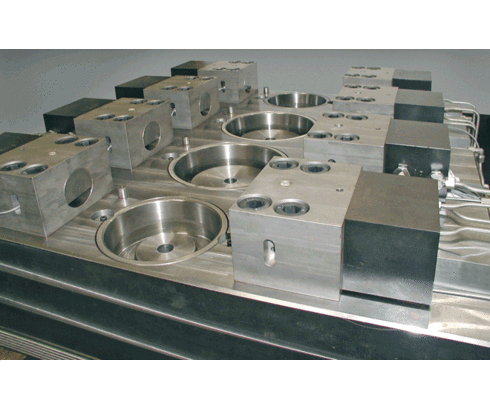

Application example 3

Wedge clamps in a forging die. Temperatures up to 250C. Possible versions for forging applications.

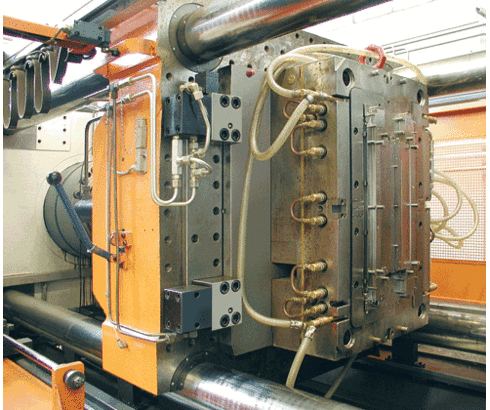

Application example 4

Wedge clamps with check valve on a Krauss Maffai injection moulding machine.
