    Series
    2.2403

    Wedge Clamps for Tapered Clamping Edge

    double acting, max. clamping force 25 to 630 kN
    with safety step, without and with position monitoring
    Wedge Clamps for Tapered Clamping Edge
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Information Series
    Description

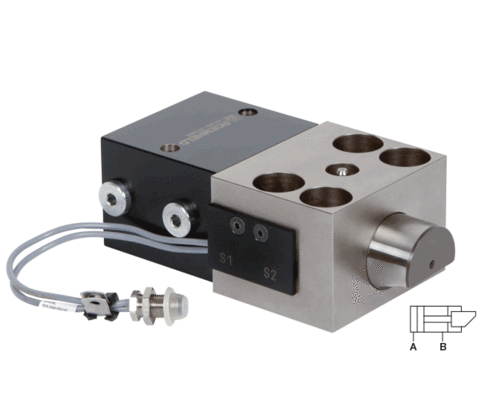

    2.2403 Wedge clamps

    with safety step, without and with position monitoring

    The clamping bolt of this version has an additional support surface parallel to the clamping edge. In the case of pressure drop (machine failure or down time) the upper die can be lowered to the safety step and safely held.

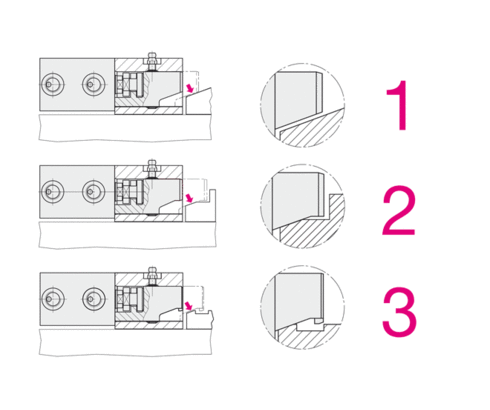

    Safety steps
    1. without safety step

    2. with safety step

    3. with form-fit safety step
    Products (14)
    type
    wedge clamp (14)
    type
    with safety step (14)
    functioning
    double acting (14)
    for clamping edge
    angular (14)
    position monitoring
    max clamping force [kN]
    max. admissible operating force [kN]
    max. temperature [°C]
    max. operating pressure [bar]
    Item no. CAD datatypetypefunctioningfor clamping edge
    Item no.
    824031000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824032000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824041000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824042000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824051000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824052000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824061000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824062000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824071000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824072000
    CAD data
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    Properties
    Item no.
    824031000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    without
    max clamping force [kN]
    25
    max. admissible operating force [kN]
    35
    max. temperature [°C]
    160
    max. operating pressure [bar]
    350
    Item no.
    824032000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    with, at the side
    max clamping force [kN]
    25
    max. admissible operating force [kN]
    35
    max. temperature [°C]
    100
    max. operating pressure [bar]
    350
    Item no.
    824041000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    without
    max clamping force [kN]
    50
    max. admissible operating force [kN]
    65
    max. temperature [°C]
    160
    max. operating pressure [bar]
    275
    Item no.
    824042000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    with, at the side
    max clamping force [kN]
    50
    max. admissible operating force [kN]
    65
    max. temperature [°C]
    100
    max. operating pressure [bar]
    275
    Item no.
    824051000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    without
    max clamping force [kN]
    100
    max. admissible operating force [kN]
    130
    max. temperature [°C]
    160
    max. operating pressure [bar]
    350
    Item no.
    824052000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    with, at the side
    max clamping force [kN]
    100
    max. admissible operating force [kN]
    130
    max. temperature [°C]
    100
    max. operating pressure [bar]
    350
    Item no.
    824061000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    without
    max clamping force [kN]
    160
    max. admissible operating force [kN]
    210
    max. temperature [°C]
    160
    max. operating pressure [bar]
    350
    Item no.
    824062000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    with, at the side
    max clamping force [kN]
    160
    max. admissible operating force [kN]
    210
    max. temperature [°C]
    100
    max. operating pressure [bar]
    350
    Item no.
    824071000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    without
    max clamping force [kN]
    250
    max. admissible operating force [kN]
    320
    max. temperature [°C]
    160
    max. operating pressure [bar]
    350
    Item no.
    824072000
    type
    wedge clamp
    type
    with safety step
    functioning
    double acting
    for clamping edge
    angular
    position monitoring
    with, at the side
    max clamping force [kN]
    250
    max. admissible operating force [kN]
    320
    max. temperature [°C]
    100
    max. operating pressure [bar]
    350
    Accessories (9)
    Item no. CAD data Description
    Item no.
    3300285
    CAD data
    Description
    Drill bushing DIN 179 A 12 x 12 mm *as per data sheet B1.738
    Item no.
    3300287
    CAD data
    Description
    Drill bushing DIN 179 A 17 x 16 mm as per data sheet B1.738
    Item no.
    3300288
    CAD data
    Description
    Drill bushing DIN 179 A 21 x 20 mm as per data sheet B1.738
    Item no.
    3300289
    CAD data
    Description
    Drill bushing DIN 179 A 26 x 20 mm as per data sheet B1.738
    Item no.
    3300420
    CAD data
    Description
    Drill bushing DIN 179 32 x 25 mm *as per catalogue sheet WZ 2.2401
    Item no.
    3300430
    CAD data
    Description
    Drill bushing DIN 179 38 x 30 mm *as per catalogue sheet WZ 2.2401
    Item no.
    3300440
    CAD data
    Description
    Drill bushing DIN 179 44 x 30 mm *as per catalogue sheet WZ 2.2401
    Item no.
    5700013
    CAD data
    /
    Description
    Connecting line with screw coupling 5-pole cable length 5 m *as per catalogue sheet WZ 4.2150
    Item no.
    5700014
    CAD data
    /
    Description
    Connecting line with screw coupling 5-pole cable length 10 m *as per catalogue sheet WZ 4.2150
