Wedge Clamps for Tapered Clamping Edge

with cooling circuit for temperatures up to 250 °C

In addition, there is a cooling circuit for oil cooling in the block cylinder. This cooling circuit guarantees a steady temperature at the sealing surfaces of the hydraulic supply.
When dimensioning the cooling circuit, the occurring temperatures and the admissible temperature at the clamping element must be considered.

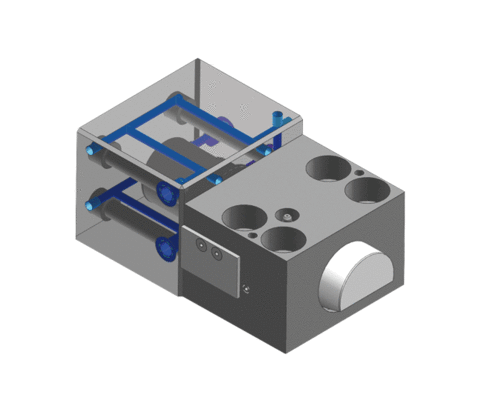

Wedge clamp with hydraulic ports A + B at the right and an additional
cooling circuit C + D at the opposite, left side.
