    Series
    5.2620

    Tenon-Type Clamps

    electro-mechanical, self-locking, with position monitoring
    clamping forces 70 kN
    Tenon-Type Clamps
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Information Series
    Description

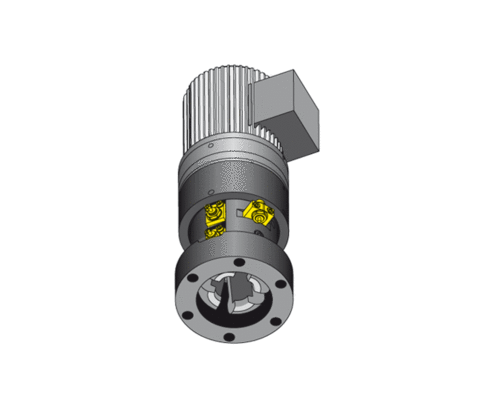

    5.2620 Tenon-type clamping elements

    Function

    The rotation of the motor is converted into a grip and pull movement of the clamping claws by the flexspline gear and the lead screw.
    For clamping, the claws grip the tenon of the clamping point and pull it towards the clamping element.
    The clamping force and the clamping and unclamping positions are monitored by inductive proximity switches. The clamping force is maintained by self-locking.

    Products (1)
    type
    tenon-type clamp (1)
    max clamping force [kN]
    70 (1)
    special feature
    clamping claws with gripping and pulling movement (1)
    position monitoring
    with (1)
    self-locking
    yes (1)
    max. static force [kN]
    110 (1)
    motor voltage
    400 VAC 50 Hz (1)
    Item no. CAD datatypemax clamping force [kN]special featureposition monitoring
    Item no.
    826230101
    CAD data
    type
    tenon-type clamp
    max clamping force [kN]
    70
    special feature
    clamping claws with gripping and pulling movement
    position monitoring
    with
    Properties
    Item no.
    826230101
    type
    tenon-type clamp
    max clamping force [kN]
    70
    special feature
    clamping claws with gripping and pulling movement
    position monitoring
    with
    self-locking
    yes
    max. static force [kN]
    110
    motor voltage
    400 VAC 50 Hz
    Error loading CAD data. Please check your internet connection and try again.
    Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
