R-MAG-M Magnetic Clamping Systems

Application

R-MAG-M magnetic clamping systems are used primarily for the automatic clamping of
different dies on sheet metal forming presses and automatic punching machines.


Description

With magnetic clamping systems, the moulds are magnetically clamped or unclamped at the push of a button within a few seconds. Since permanent magnets generate the force
of the magnetic clamping plates, electric clamping is only required to magnetize the
plates.
The magnetic clamping plates are de-energized in clamped condition and thus absolutely
safe in case of power failure. Additionally, the complete clamping cycle is monitored by different sensors, thus guaranteeing reliable die clamping.

Advantages

• QUICK – Dies are clamped in one second at the touch of a button
• PROFITABLE – Setup cost optimisation from die change that takes only a few minutes
• FLEXIBLE – Die standardization no longer required
• ERGONOMIC – Safe die handling with ease
• RELIABLE – Distortion-free and full-surface retention force even if power fails
• SAFE – Various sensors monitor the entire clamping cycle

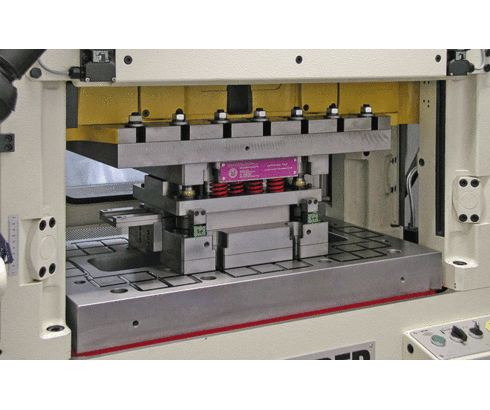

Die or mould change on punches and presses within a few minutes as well as further processing advantages are created with magnetic clamping systems.

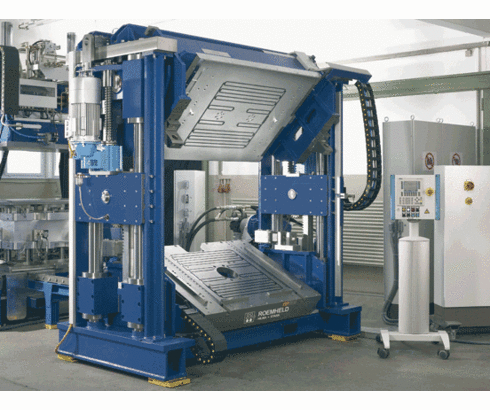

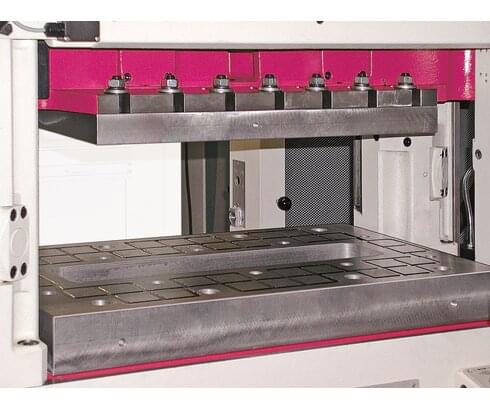

Vertical arrangement with high safety requirements.
Control and signal exchange with requirements for high performance levels.
