    Series
    4.2180

    Pull Clamps

    Clamping force from 60 up to 164 kN
    double acting, max. operating pressure 400 bar
    Pull Clamps
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Information Series
    Description
    Pull clamping elements 4.2180

    Double-acting pull clamping element for clamping dies on a press bed or press ram.
    The die must be provided with T-slots for the tie rod. The die must be inserted in the correct position and in parallel with the clamping elements.
    Monitoring of the clamping and unclamping position by inductive proximity switches. Tie rod and piston are hardened and ground. The hydraulic system is protected against dirt by wiper rings.



    Applications

    • integrated in press rams
    • integrated in press beds
    • in machine tools and equipment
    • when the available space is limited



    Special features

    • high operational safety by position monitoring
    • ideal force transmission with centrally arranged clamping elements
    • compact design
    • clamping force from 60 kN up to 164 kN
    • suitable for large clamping edge tolerances (±1.5 mm)
    • no interfering edges when inserting the dies
    • optimum use of ram and bed surfaces
    • clamping at difficultly accessible points
    Video
    Products (6)
    type
    pull clamp (6)
    stroke [mm]
    10 (6)
    functioning
    double acting (6)
    max. operating pressure [bar]
    400 (6)
    position monitoring
    with inductive proximity switches (6)
    design
    compact (6)
    nominal clamping stroke [mm]
    for T-slot as per DIN 650
    - (6)
    max. clamping force [kN]
    Item no. CAD datatypestroke [mm]functioningmax. operating pressure [bar]
    Item no.
    2184160
    CAD data
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2184200
    CAD data
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2185160
    CAD data
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2185200
    CAD data
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2186160
    CAD data
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2186200
    CAD data
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2184160
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    with inductive proximity switches
    design
    compact
    nominal clamping stroke [mm]
    28
    for T-slot as per DIN 650
    -
    max. clamping force [kN]
    60
    Item no.
    2184200
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    with inductive proximity switches
    design
    compact
    nominal clamping stroke [mm]
    28
    for T-slot as per DIN 650
    -
    max. clamping force [kN]
    60
    Item no.
    2185160
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    with inductive proximity switches
    design
    compact
    nominal clamping stroke [mm]
    37
    for T-slot as per DIN 650
    -
    max. clamping force [kN]
    104
    Item no.
    2185200
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    with inductive proximity switches
    design
    compact
    nominal clamping stroke [mm]
    37
    for T-slot as per DIN 650
    -
    max. clamping force [kN]
    104
    Item no.
    2186160
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    with inductive proximity switches
    design
    compact
    nominal clamping stroke [mm]
    48
    for T-slot as per DIN 650
    -
    max. clamping force [kN]
    164
    Item no.
    2186200
    type
    pull clamp
    stroke [mm]
    10
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    with inductive proximity switches
    design
    compact
    nominal clamping stroke [mm]
    48
    for T-slot as per DIN 650
    -
    max. clamping force [kN]
    164
    Accessories (3)
    Item no. CAD data Description
    Item no.
    5700013
    CAD data
    /
    Description
    Connecting line with screw coupling 5-pole cable length 5 m *as per catalogue sheet WZ 4.2150
    Item no.
    5700014
    CAD data
    /
    Description
    Connecting line with screw coupling 5-pole cable length 10 m *as per catalogue sheet WZ 4.2150
    Item no.
    5700015
    CAD data
    /
    Description
    Distribution block with LED display to connect 4 clamping elements display of unclamping and clamping position of each clamping element via LED display. Included in our delivery: 4 coupling plugs, 5-pole 1 coupling plug, 16-pole *as per catalogue sheet WZ 4.2150
    Application examples

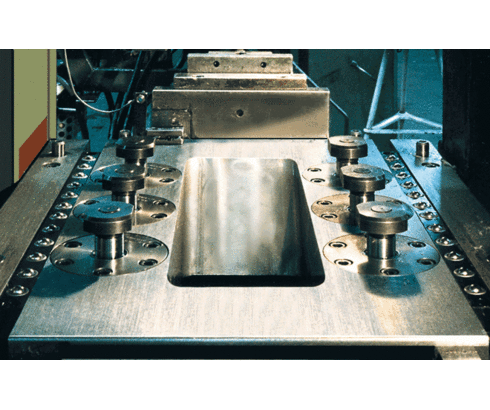

    Application example 1

    Pull clamping elements integrated in press bed of a double-column press. Feeding of dies by roller bars inserted in the T-slots of the press bed.

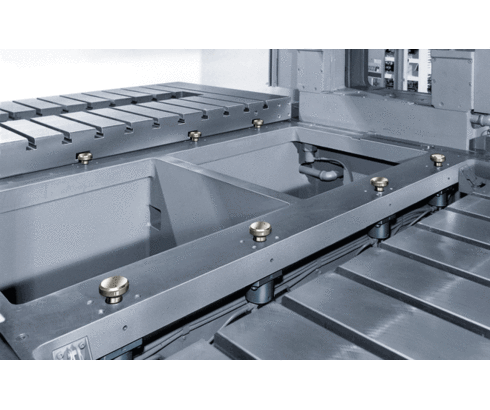

    Application example 2

    Clamping of a complete die changing table with pull clamping elements.

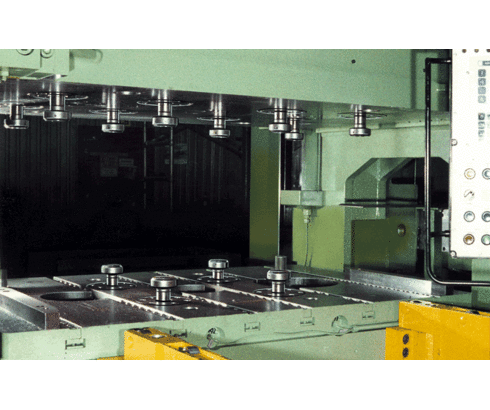

    Application example 3
