    4.2350

    Pull Clamps with T-Slot

    clamping force from 55 to 144 kN
    double acting, max. operating pressure 400 bar
    Pull Clamps with T-Slot
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Information Series
    Description
    Pull clamping elements with T-slot 4.2350

    The pull-clamping element with T-slot facilitates a die standardisation by means of T-slot bars or T-nuts on the die.
    The hydraulic oil supply is made either through drilled holes in the bed and the ram or through pipes.
    Tie rod and piston are hardened and ground.
    The hydraulic system is protected against dirt by wiper rings.



    Applications

    • Installation in press rams
    • Installation in press beds
    • Integrated in an intermediate plate
    • When the available space is limited



    Advantages

    • Compact design
    • Bed and ram can also be used for manual clamping
    • Ideal force transmission with centrally arranged clamping elements
    • Optimum use of bed and ram surfaces
    Products (3)
    type
    pull clamp with T-slot (3)
    stroke [mm]
    6 (3)
    functioning
    double acting (3)
    max. operating pressure [bar]
    400 (3)
    position monitoring
    without (3)
    design
    compact (3)
    nominal clamping stroke [mm]
    - (3)
    for T-slot as per DIN 650
    max. clamping force [kN]
    Item no. CAD datatypestroke [mm]functioningmax. operating pressure [bar]
    Item no.
    2354050
    CAD data
    type
    pull clamp with T-slot
    stroke [mm]
    6
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2355050
    CAD data
    type
    pull clamp with T-slot
    stroke [mm]
    6
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2356050
    CAD data
    type
    pull clamp with T-slot
    stroke [mm]
    6
    functioning
    double acting
    max. operating pressure [bar]
    400
    Properties
    Item no.
    2354050
    type
    pull clamp with T-slot
    stroke [mm]
    6
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    without
    design
    compact
    nominal clamping stroke [mm]
    -
    for T-slot as per DIN 650
    18
    max. clamping force [kN]
    55.2
    Item no.
    2355050
    type
    pull clamp with T-slot
    stroke [mm]
    6
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    without
    design
    compact
    nominal clamping stroke [mm]
    -
    for T-slot as per DIN 650
    22
    max. clamping force [kN]
    76
    Item no.
    2356050
    type
    pull clamp with T-slot
    stroke [mm]
    6
    functioning
    double acting
    max. operating pressure [bar]
    400
    position monitoring
    without
    design
    compact
    nominal clamping stroke [mm]
    -
    for T-slot as per DIN 650
    28
    max. clamping force [kN]
    144
    Application examples
    Application example 1

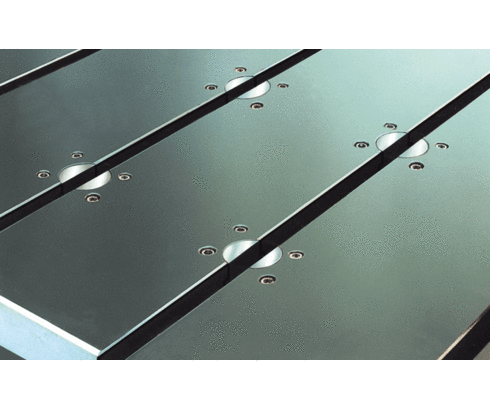

    Pull clamping elements with T-slot installed in a press bed.

    Application example 2

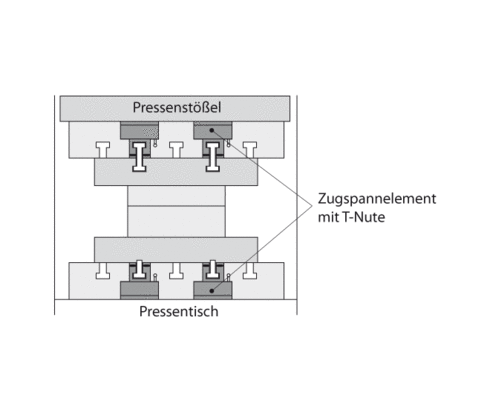

    Die clamping in a press.
    Ram: clamping of the upper die using double T-slot bars
    Bed: clamping of the lower die using firmly mounted T-slot bars

    Error loading CAD data. Please check your internet connection and try again.
    Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
