    3.2206-2

    Angular Clamps, hydraulic, clamping block

    single acting, with spring return
    max. operating pressure 400 bar
    clamping force from 40 kN to 110 kN

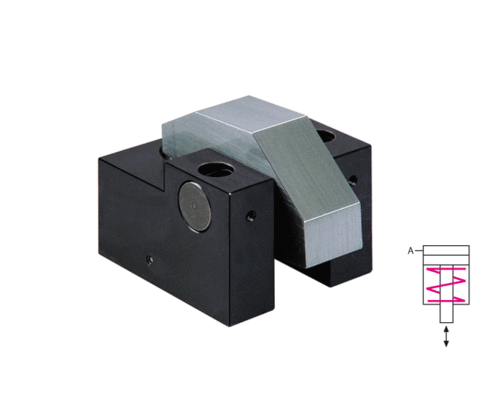

    Angular Clamps, hydraulic, clamping block
    Downloads
    Catalogue sheet
    USESFR
    Operating instructions
    Available on demand.
    Information Series
    Description
    Clamping block 3.2206 Angular clamps

    Clamping on the die clamping edge by the application of hydraulic pressure to the piston and unclamping by spring force.
    The clamping block can be fixed by screwing it directly onto the press bed or machine table or flexibly so that it can be moved in combination with a T-slot adapter in the T-slots of a press bed or ram.

    Products (5)
    clamping stroke [mm]
    total stroke [mm]
    type
    clamping block (5)
    functioning
    single acting with spring return (5)
    max. operating pressure [bar]
    400 (5)
    hydraulic ports
    pipe thread G1/4 (5)
    max. clamping force [kN]
    position monitoring
    for T-slot [mm]
    max. operating temperature [°C]
    120 (5)
    Item no. CAD datatypefunctioningmax. operating pressure [bar]hydraulic ports
    Item no.
    823120101
    CAD data
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    Properties
    Item no.
    823120104
    CAD data
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    Properties
    Item no.
    823140501
    CAD data
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    Properties
    Item no.
    823140504
    CAD data
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    Properties
    Item no.
    823150501
    CAD data
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    Properties
    Item no.
    823120101
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    clamping stroke [mm]
    2.5
    max. clamping force [kN]
    40
    position monitoring
    without
    total stroke [mm]
    5.5
    for T-slot [mm]
    18/22
    max. operating temperature [°C]
    120
    Item no.
    823120104
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    clamping stroke [mm]
    2.5
    max. clamping force [kN]
    40
    position monitoring
    with
    total stroke [mm]
    5.5
    for T-slot [mm]
    18
    max. operating temperature [°C]
    120
    Item no.
    823140501
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    clamping stroke [mm]
    3
    max. clamping force [kN]
    66
    position monitoring
    without
    total stroke [mm]
    6
    for T-slot [mm]
    22/28
    max. operating temperature [°C]
    120
    Item no.
    823140504
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    clamping stroke [mm]
    3
    max. clamping force [kN]
    66
    position monitoring
    with
    total stroke [mm]
    6
    for T-slot [mm]
    22
    max. operating temperature [°C]
    120
    Item no.
    823150501
    type
    clamping block
    functioning
    single acting with spring return
    max. operating pressure [bar]
    400
    hydraulic ports
    pipe thread G1/4
    clamping stroke [mm]
    3
    max. clamping force [kN]
    110
    position monitoring
    without
    total stroke [mm]
    6
    for T-slot [mm]
    28/36
    max. operating temperature [°C]
    120
    Application examples
    Application example 1

    Angular clamps 3.2206

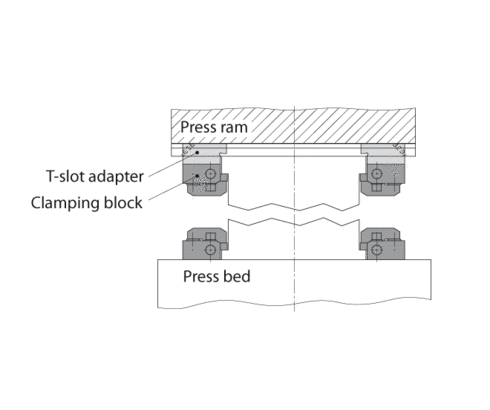

    Installation example: Angular clamps 3.2206
    Installation example: Angular clamps 3.2206
